Product

AFS570020
AFS570020

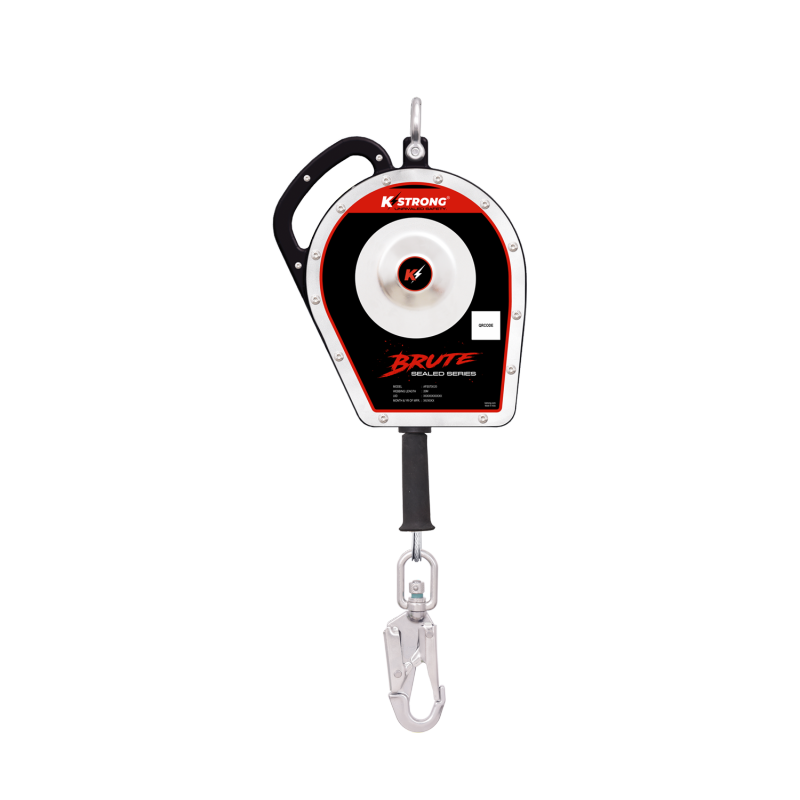

Brute Sealed Block 20 Meter with Steel Snap Hook

AFS570020 AFS570020-UIM DOC-AFS570020

The KSTRONG BRUTE Sealed Retractable Fall Arrester is the ultimate safety guardian for professionals operating in the most extreme environments. Its core identity is forged from an impenetrable sealed design and superior anti-corrosion construction, engineered to deliver unrivaled fall protection on offshore platforms, in oil and gas facilities, mining operations, and potentially explosive atmospheres. Our value proposition is to provide absolute reliability, durability, and safety where other equipment may fail, safeguarding your most valuable asset—your team.

  • IP69K Total Sealed Protection: Certified to IP69K per ISO-20653 , this block offers complete defense against the ingress of dust, high-pressure steam, and water, ensuring flawless operation of critical internal components in any harsh environment.
  • ATEX Certified for Explosive Atmospheres: Fully certified for safe use in potentially explosive atmospheres (II 2G Ex h llc T6 Gb) according to ATEX Directive 2014/34/EU, making it essential for high-risk zones.
  • Superior Corrosion Resistance: Featuring stainless steel cable and key components , it has passed a 2000-hour neutral salt spray test, making it the ideal choice for offshore and chemical-intensive applications.

Scope of Application

  • Oil & Gas Industry (Onshore & Offshore)
  • Sewage Treatment Plants
  • Mining and Quarrying
  • Confined Spaces with Potentially Explosive Atmospheres
  • Chemical Processing Plants & Corrosive Environments
  • Maritime Engineering & Ship Maintenance
Brand KSTRONG UNRIVALED SAFETY
SKUAFS570020

Extreme Environments, Ultimate Guardian

The KSTRONG BRUTE Sealed SRL AFS570020, Engineered to Conquer Any Challenge.

  • An industrial-grade, sealed self-retracting lifeline (SRL) engineered for the harshest environments, providing 20 meters of dependable fall protection.
  • If you work at height on offshore platforms, in oil and gas facilities, mining operations, sewage plants, or any severe environment with explosion risks, this is your premier safety solution.
  • It boasts a top-tier IP69K sealed design and ATEX certification, completely isolating internal mechanics from dust, moisture, and chemicals to guarantee absolute reliability under extreme conditions.

Value and Benefits

  • Maximize Equipment Lifespan & ROI: The IP69K-rated sealed design protects the precision internal mechanism, significantly extending the product's service life in harsh environments and lowering the total cost of ownership.
  • Ensure Maximum Operational Safety: ATEX certification and a high 140 kg user capacity deliver uncompromising safety for a diverse range of workers in the most high-risk locations.
  • Reduce Maintenance Costs & Downtime: Superior corrosion-resistant materials and robust construction drastically reduce damage from environmental factors, minimizing repair needs and ensuring the equipment is always ready for duty.
  • Enhance Work Efficiency: An ergonomic handle, swiveling anchorage eye, and swiveling snap hook facilitate easy transport and reduce lifeline twisting and wear, enabling smoother operation.

Performance

  • Maximum Rated Load: 140 kg (310 lbs)
  • Minimum Breaking Strength (MBS): 15 kN
  • Arrest Distance: < 2.0 m (with 100 kg test mass)
  • Arresting Force: < 6.0 kN (with 100 kg test mass)
  • Fall Indicator: Integrated into the swivel snap hook for clear visual inspection of fall arrest events.
  • Operating Temperature: -30°C to +50°C

Specifications

  • Model: AFS570020
  • Cable Length: 20 m (66 ft)
  • Weight: 11.83 kg (26.08 lbs)
  • Housing Material: High-impact polymer & Stainless Steel
  • Lifeline Material: Ø 4.5mm Stainless Steel Wire Rope
  • Anchorage End Connector: Stainless Steel Quarter-Turn Locking Karabiner (MBS 25kN)
  • Harness End Connector: Stainless Steel Swivel Snap Hook (MBS 23kN)

Certifications

  • EN 360:2002
  • AS/NZS 1891.3:2020
  • ATEX 2014/34/EU: EN ISO 80079-36:2016, EN ISO 80079-37:2016 (II 2G Ex h llc T6 Gb)
  • IP69K (as per ISO 20653)
  • Vibration Test IEC 60068-2-6:2007

Maintenance

  • A visual pre-use check should be conducted by the user before each use.
  • A detailed periodic examination must be conducted by a competent person at least every 12 months.
  • All inspection and maintenance records can be managed digitally via the KSTRONG COMPASS™ App.
  • The estimated product lifespan is 10 years from the date of manufacture, subject to usage intensity and environmental conditions.
