AFA930101
AFA930101

ADJUSTABLE PARAPET ANCHOR

AFA930101-TDS AFA930101-UIM DOC-AFA930101

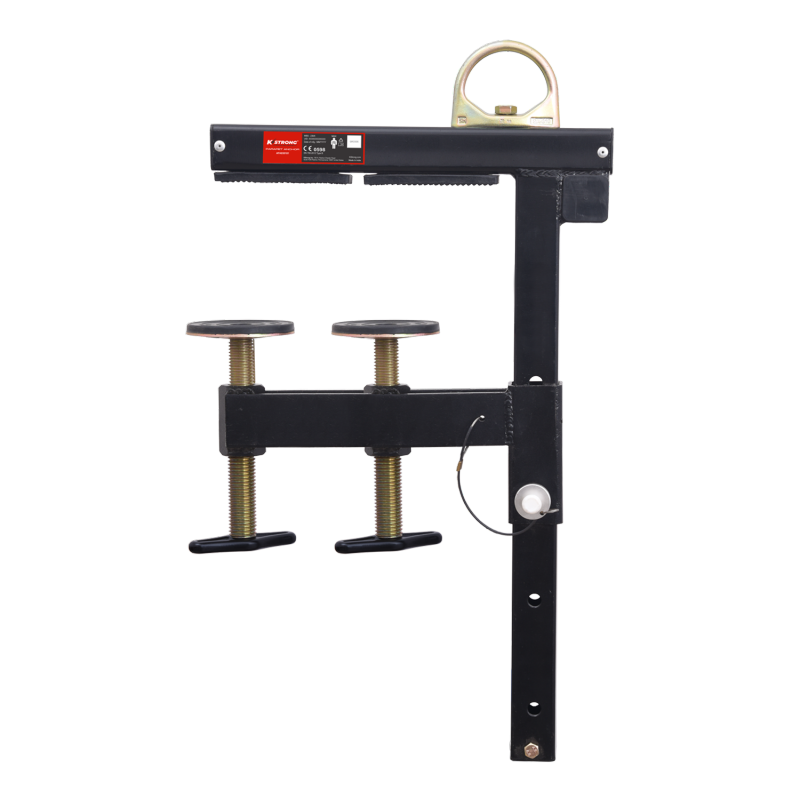

The KSTRONG AFA930101 is the premier mobile anchorage solution for at-height professionals. Its core value lies in providing a non-penetrating, rapidly deployable, and highly adaptable temporary fall protection anchor point. We propose that absolute safety should never come at the cost of structural integrity or operational efficiency. The AFA930101 is the perfect embodiment of this philosophy, ensuring you have rock-solid protection on any parapet or facade structure.

  • Ultra-Wide Adjustability: The clamp jaw offers an exceptional adjustment range from 60mm to 360mm (2.36" to 14.17"), accommodating the vast majority of parapet and facade thicknesses with universal versatility.
  • Non-Penetrating Installation: Utilizes a powerful clamping mechanism with protective rubber grips to securely fasten without drilling or structural damage, perfectly preserving the building's integrity and aesthetics.
  • Efficient, Tool-Free Deployment: Can be fully installed and removed by hand without any tools, significantly reducing setup time and enhancing team mobility and efficiency.

Scope of Application:

  • Building Construction & Maintenance
  • Facade & Window Cleaning Operations
  • Roof & Parapet Inspection and Repair
  • Bridge & Civil Structure Inspections
  • Any industrial environment requiring a temporary fall arrest anchor point on a parapet structure.
Brand KSTRONG UNRIVALED SAFETY
SKUAFA930101

The Ultimate Structure Guardian—Establish Your Zone of Absolute Safety on Any Parapet in Under 30 Seconds, No Drilling Required.

  • A professional-grade, portable clamp-style anchor designed to create a temporary, secure personal fall arrest attachment point on parapet walls.
  • If your team performs temporary work at height on parapets between 60mm and 360mm thick—like maintenance, cleaning, or installation—and you cannot damage the structure, this is your ideal solution.
  • Its extended movable arm overcomes limitations from architectural moldings. It offers tool-free, rapid installation and is dual-certified to EN 795 Type B and ANSI Z359.18, combining ultimate convenience with unrivaled safety.

Value & Benefits

  • Protect Asset Value: The non-intrusive design prevents structural damage and subsequent repair costs associated with drilling, maintaining the building's original value.
  • Boost Operational Efficiency: Enables rapid deployment and removal, maximizing your team's productive hours and providing flexibility for multi-location jobs or urgent tasks.
  • Reduce Risk & Liability: Provides a reliable anchor point that meets top-tier international safety standards, effectively preventing fall incidents and avoiding potential multi-million dollar liabilities.
  • Enhance Professional Image: Using advanced, structure-friendly safety equipment demonstrates the highest commitment to safety and quality, earning client trust and confidence.
  • Versatile & Adaptable: A single, widely adjustable unit covers a vast range of job site requirements, reducing the need for multiple anchor sizes and simplifying equipment logistics.

Performance

  • Construction: Fabricated from high-strength alloy steel with a durable ED-coated finish for superior corrosion and weather resistance.
  • Static Strength: Features a Minimum Breaking Strength (MBS) of 23kN (5170 lbs), providing an exceptional safety factor that exceeds industry standards.
  • Dynamic Performance: Successfully passed dynamic testing with a 100 kg mass, with the anchor remaining stable and capable of withstanding a 300 kg rescue load post-fall.
  • Clamping Mechanism: A dual-screw tightening system and a locking pin deliver robust fixation, while rubber gripping discs ensure maximum friction without marring the surface.
  • User Capacity: Engineered for single-person use as part of a complete personal fall arrest system (PFAS).

Specifications

  • Material: High-Strength Alloy Steel
  • Finish: ED Coated, Black
  • Adjustment Width: 60 mm - 360 mm (2.36 in - 14.17 in)
  • System Weight: 9.560 kg ± 0.10 kg (21.08 lbs ± 0.22 lbs)
  • Minimum Breaking Strength (MBS): 23 kN (5170 lbs)
  • Overall Dimensions: 577.5 mm (L) x 361.0 mm (H) (22.73 in x 14.21 in)

Certifications

  • EN 795:2012 Type B
  • ANSI Z359.18-2017
  • CE 0598

Maintenance

  • Pre-Use Check: A visual inspection for any deformation, corrosion, cracks, or missing parts must be conducted before each use. Ensure clamping function is correct.
  • Periodic Inspection: A formal, detailed inspection must be performed and documented by a competent person at least every 12 months.
  • Cleaning: Use a neutral detergent with water for cleaning. Avoid abrasive or corrosive materials. Air dry away from direct heat.
  • Storage: Store in a well-ventilated, dry area away from chemicals, direct sunlight, and physical damage. Do not stack heavy items on top.
