Conquer the Container
KSTRONG AFA930602, Instantly Establish Your Absolute Safety Zone.

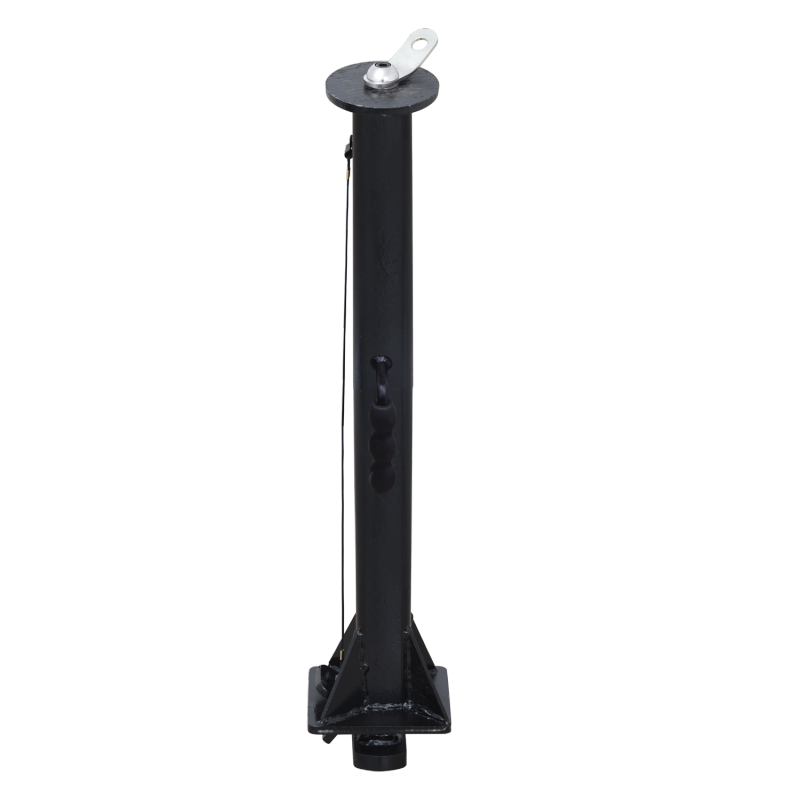

- A mobile, high-strength, certified fall protection anchor designed for work atop shipping containers.
- Perfect for any professional needing to perform maintenance, inspections, or any task at height on 20ft or 40ft containers.
- Features a unique side-lock mechanism for rapid, single-person installation; a 360° swivel eye for total work flexibility, and is certified to stringent EU standards for ultimate safety.
Value & Benefits
- Ultimate Safety Assurance: Rigorously compliant with EN 795:2012 Type B, providing an anchor strength of up to 15 kN to securely protect lives in high-risk environments, forming a core element of corporate risk management.
- Enhanced Operational Efficiency: Innovative single-person rapid installation design eliminates the need for complex tools or multiple personnel, significantly reducing setup and teardown times to maximize hours on core tasks.
- Versatile Application Flexibility: Serves as a superior standalone anchor and easily extends to support horizontal lifeline systems, adapting from single-point maintenance to large-area mobility with one device.
- Corporate Asset Protection: The non-intrusive mounting method fits perfectly into container corner castings without damaging the structure, preserving the integrity and value of corporate assets.
- Harsh Environment Ready: Constructed from high-strength alloy steel with a protective ED-coated finish, it offers exceptional resistance to corrosion and weathering, ensuring reliable performance in port-side salt spray or variable climates.
Performance
- Static Strength: Passed a 12 kN load test sustained for 3 minutes.
- Dynamic Performance: Successfully arrested a 100 kg test mass fall, with the structure remaining stable.
- Corrosion Resistance: Showed no signs of corrosion after 48 hours of neutral salt spray testing.
- Minimum Breaking Strength (MBS): 15 kN.
- User Capacity: For single-person use.
Specifications
- Material: High-Strength Alloy Steel.
- Finish: ED Coated (Black).
- Weight: 14.53 kg ± 0.050 kg (32.03 lbs ± 0.11 lbs).
- Height: 935 mm (36.8 inches) (excluding eyelet).
- Anchorage Point: Integrated 360° swivel eye on top.
- Installation Mechanism: Side locking pin with tag line for assisted installation.
Certifications
- CE 0598
- EN 795:2012 Type B
- TS 16415:2013 Type B
Maintenance
- Conduct a visual inspection before each use to ensure all components are intact.
- A detailed periodic examination must be performed at least every 12 months by the manufacturer or a certified competent person.
- For cleaning, use a cotton cloth or soft brush; for intensive cleaning, wash with a neutral detergent in warm water (30°C to 60°C) and allow to air dry.
- Store in a well-ventilated, dry location away from chemical corrosives, extreme temperatures, and direct sunlight.
